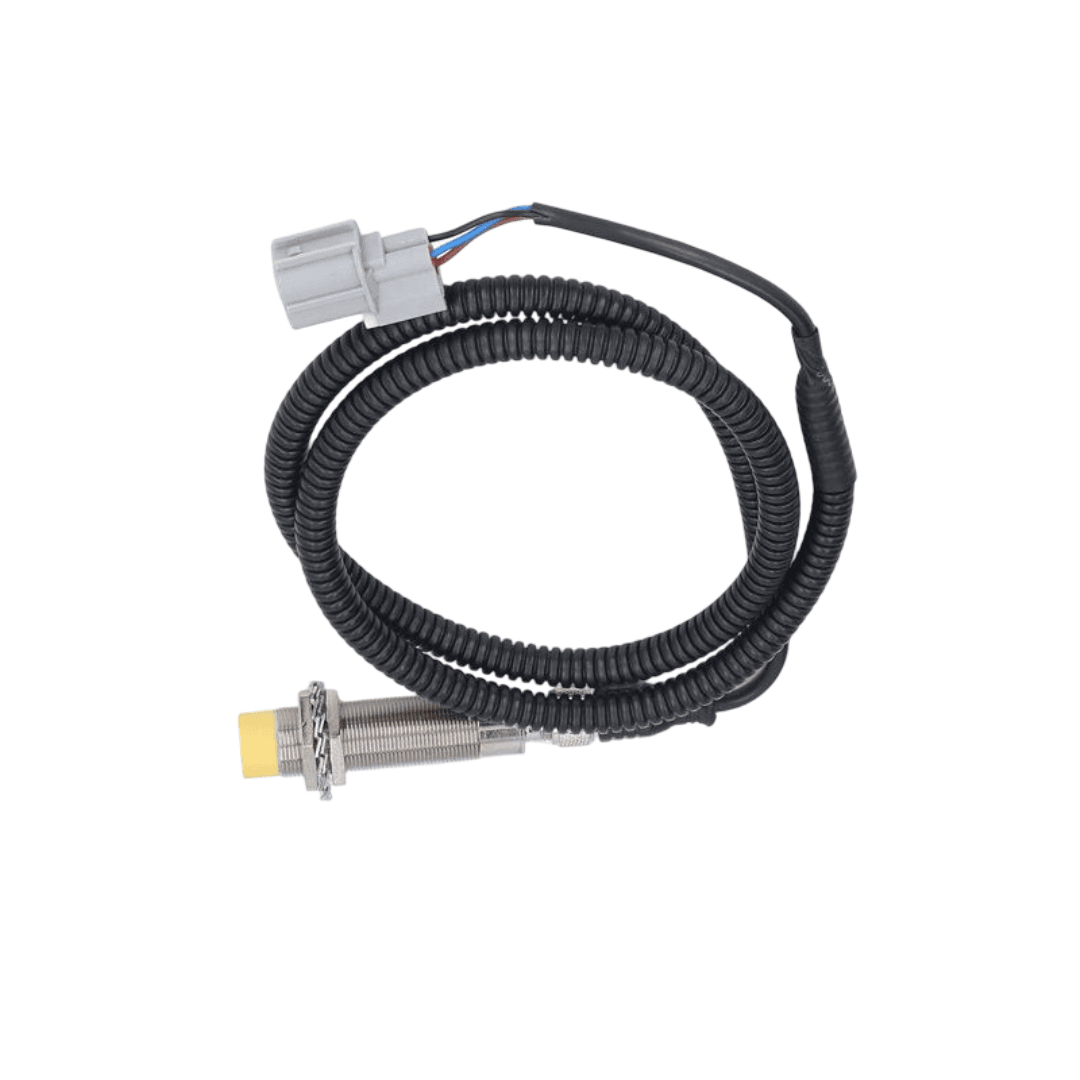

701/34900 24V Wheel Rotation Steering Proximity Sensor Replacement for JCB 3CX 4CX Backhoe Loader 701-34900 70134900

Product Overview The 701/34900 (701-34900) Wheel Rotation & Steering Proximity Sensor is a premium, heavy-duty 24V electro-mechanical diagnostic component engineered engineered specifically for JCB Backhoe Loaders and Construction Machinery. Serving a vital dual-purpose layout in JCB systems, this inductive proximity switch operates as a steering alignment approach tracker and a drivetrain wheel rotation monitor. By measuring precise clearance gaps near steering knuckles or rotating gear assemblies, it delivers stable digital pulse signals straight to the machine’s central electrical control unit. This secures flawless synchronization between 2-wheel, 4-wheel, and crab steering modes while protecting transmission integrity during high-load site maneuvers. Technical Specifications Primary JCB OE Number: 701/34900, 701-34900 Interchangeable Code: 70134900 Operating Voltage: 24V DC Industry Standard Specification Sensor Technology: Inductive Proximity / Non-Contact Electromagnetic Approach Switch Function: Tracks Wheel Rotational Velocity, Steering Over-Travel Alignment, and Proximity Pressure Points Connector Housing: Heavy-Duty Sealed Weatherproof Multi-Pin Plug with Anti-Chafe Threaded Body Condition: 100% Brand New Premium Commercial Aftermarket Replacement Broad Vehicle Compatibility This premium 24V proximity sensor delivers exact factory dimensional matching and signal calibrations across the world’s most widely used JCB backhoe and telescopic handler platforms: Equipment Category Compatible JCB Models & System Configurations JCB Backhoe Loaders (Classic & Modern) JCB 3CX, 4CX, 5CX Center-Mount and Sitemaster Heavy-Duty Excavator Loaders JCB Powertrain & Steering Groups Compatible with JCB 4WS (4-Wheel Steering) systems, front/rear driving axles, and synchronized steering tracking rings JCB Industrial Material Handling Select heavy-duty telescopic handlers (Telehandlers) and rough-terrain forklifts utilizing 24V electric approach sensor blocks Key Benefits Seamless Electronic Alignment: Formulated to synchronize instantly with JCB’s native steering logic boards, eliminating the need for complex manual dashboard sensor calibrations. Rugged Industrial Threaded Casing: Hardened metal body resists stripping under heavy torque adjustments and completely withstands wet mortar, flying gravel, and thick jobsite grease. Pinpoint Proximity Diagnostics: Instantly rectifies common machine errors, including stuck steering alignment warnings, failure to shift into crab-steering mode, or intermittent 24V power drop codes. Heavy-Duty Weatherproofing: Fully potted internal electronics insulate the connection pins against high-pressure washdowns, deep mud immersion, and persistent axle vibrations. Cross-Reference Guide This sensor interchanges directly with the following official manufacturer and fleet catalog references: JCB GENUINE PARTS: 701/34900, 701-34900, 70134900 CONSTRUCTION EQUIPMENT SPARES: Premium high-durability electrical parts engineered to match original factory industrial telemetry parameters Maintenance Tip: If your JCB 3CX or 4CX Backhoe Loader starts flashing a steering misalignment error light, drifts slightly during high-speed road travel, or hesitates when switching from 2-wheel to 4-wheel steering, inspect the 701/34900 sensor position. Because this non-contact switch is mounted near the lower axle steering linkage or wheel hub assembly, heavy mud caking, packed clay, or grease buildup can easily block the inductive sensing face. Before mounting this new replacement unit, thoroughly pressure-wash the steering target ring area, verify the 24V wire harness connector pins are completely dry, and maintain the precise factory air-gap clearance during installation.
